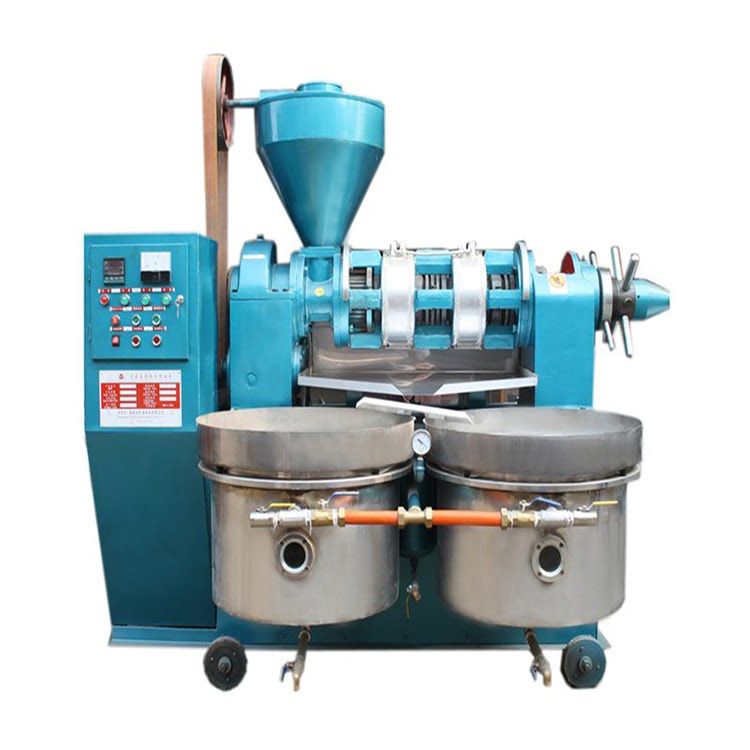

YZYX120WZ with filter combined oil press

• [email protected]
• Especializada en la producción de maquinaria para cereales y aceite.

Si está interesado en nuestra YZYX120WZ with filter combined oil press, por favor envíenos una consulta.

Contáctenos

The series automatic temperature controlled combined oil presses made by our company are suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.

The series YZYX120WZ combined oil presses is developed on the basis of the single machine to meet the market demands. The function of auto-heating the press cage has replaced the traditional way by squeezing residue cake, which could shorten the preparation work, reduce the energy consumption and abrasion, and thus lengthen the durability. When the squeezing is suspended, the temperature can be maintained by this system. In the meanwhile, this machine was added with filtration function. The crude oil discharged from the press cage will directly be filtrated by the vacuum filtration system. Comparing with the traditional plate frame filtration machine, the vacuum filtration machine is lighter, easier to operate and more convenient to clean the residue (so the residue can be re-squeezed in time if necessary). The structure of this combined oil press is compact, only requires a small working place and saves labor. It is ideal equipment for medium or small oil refinery and enterprise, especially suitable for processing material supplied by clients in rural area.

YZYX120WZ is basic 2-step squeezing machine.

YZYX120-8WZ is 3-step squeezing machine. Besides of the advantages of 2 step squeezing machine YZYX120WZ, YZYX120-8WZ has bigger pressing force in the chamber. Users could get better economic profit when operate it properly. It is suitable for users with operation experience and stress on low oil content in cake.

YZYX120-9WZ is 4-step squeezing machine. The squeezing force in its chamber is bigger than that of YZYX120-8WZ. Practices proved its squeezing efficiency and the oil yield efficiency is better.

Main technique features:

Below features are based on oil plants with above average quality smoothly and continuously squeezed after good pretreatments, such as screening, husking, flaking and cooking, etc.

Note:

¢Ù It is normal that sometimes the actual results may be a little different from those in the index, for the oil plant’s type, quality and original content may be different in different areas.

¢Ú The day capacity (t/24h) is based on using hot way to squeeze one time. If use cold way to squeezing two or three times, the day capacity will be 1/2 or 1/3 time less accordingly. The more the squeeze times are, the lower the date capacity is.

Technical Specification:
